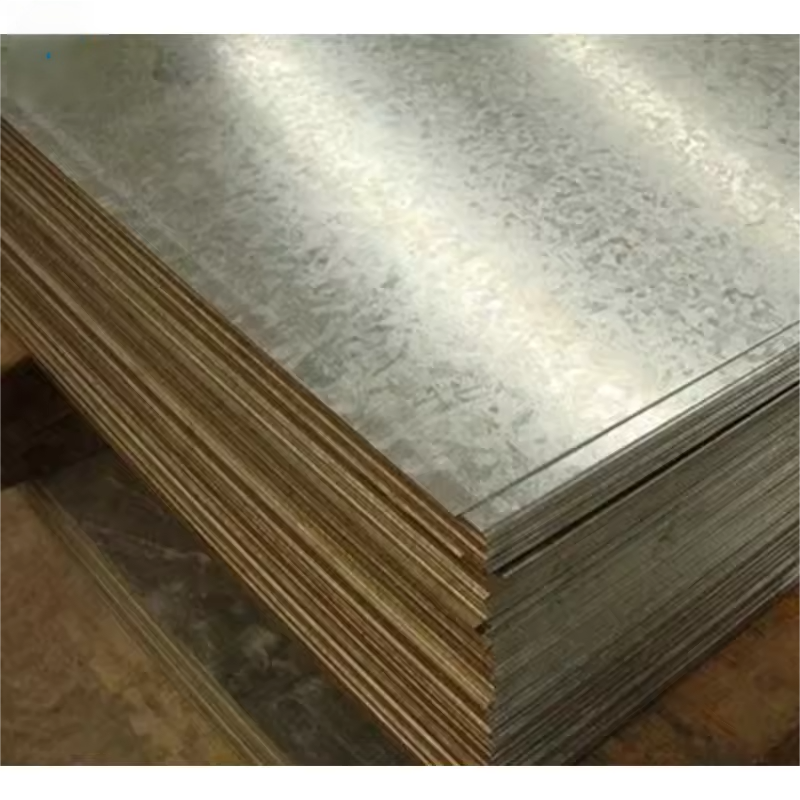

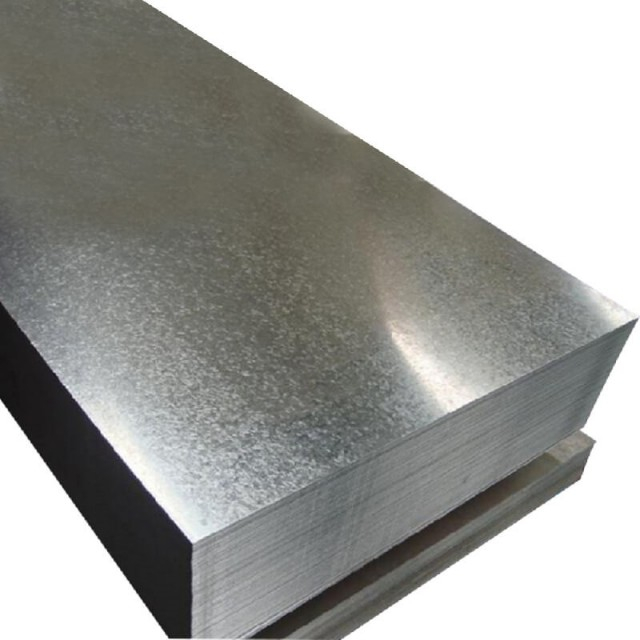

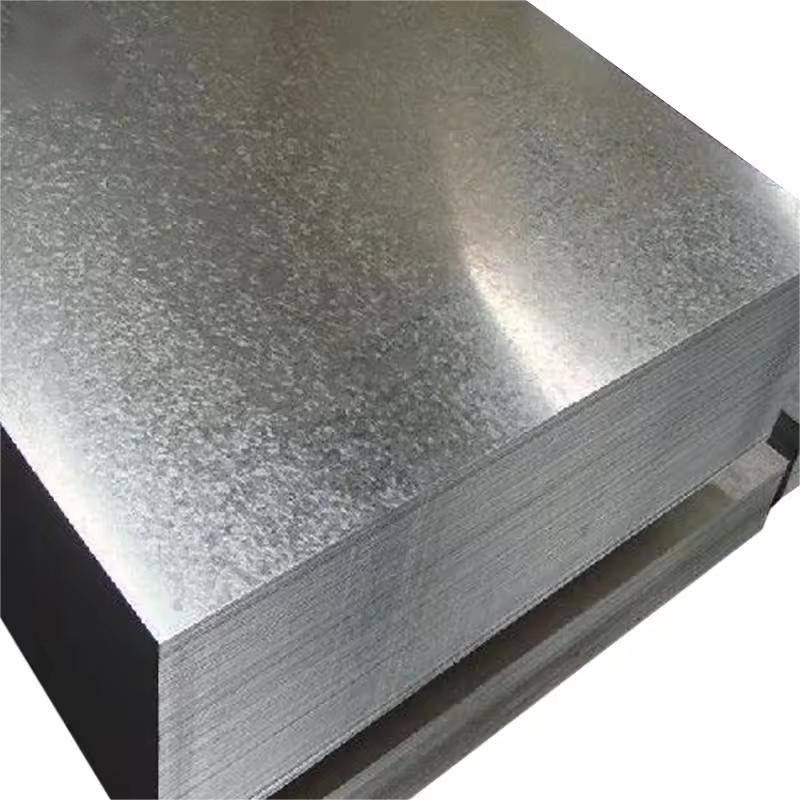

Hot dipped galvanized steel sheet

Hot Dipped Galvanized Steel Sheet Manufacturer
No cutting corners on zinc weight.
Accept SGS testing.
Hot dipped galvanized steel sheet is a type of steel product that has been coated with a layer of zinc to protect it from corrosion.

Brand:
TSD

Availability:

Quantity:



Inquire Add to Basket

Product Description

Hot Dipped Galvanized Steel Sheet Manufacturer

No cutting corners on zinc weight. Accept SGS testing.

Hot dipped galvanized steel sheet is a type of steel product that has been coated with a layer of zinc to protect it from corrosion.

Name	galvanized steel sheet
Zinc Coating	20-275g/m2
Thickness	0.12-2.5mm
Width	600-1250mm
Longth	50-12000mm
Surface Finish	Big/Regular/Zero/Bright
OEM	Provide
Test report	Provide

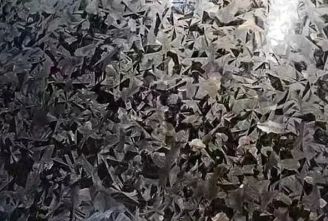

Big Spangle

Natural solidification, with obvious zinc flowers on the surface and a larger diameter

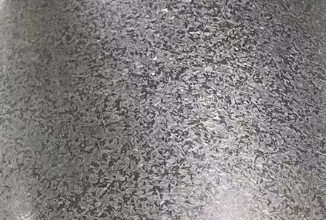

Regular Spangle

Conventional zinc flower for hot-dip galvanizing

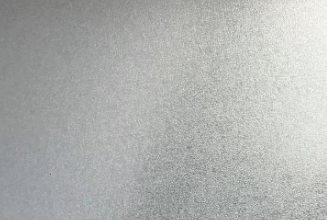

Zero Spangle

Smooth surface without obvious zinc flower structure

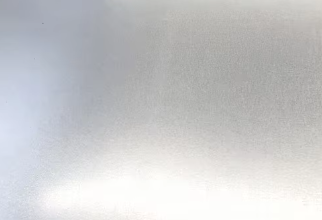

Bright

Has high gloss and surface smoothness, with better decorative and corrosion resistance properties

Available Steel Grade（Ensure weight and support third-party testing）
Steel grade	Coating	Yield（MPA）	Tensile（MPA）	Elongation（%）
DX51D	Z；ZF	--	270-500	20
DX52D	Z；ZF	140-300	270-420	22
DX53D	Z；ZF	140-260	270-380	26
DX54D	Z；ZF	140-220	270-350	30
S220GD	Z；ZF	220	300	18
S250GD	Z；ZF	250	330	17
S280GD	Z；ZF	280	360	16
S320GD	Z；ZF	320	390	15
S350GD	Z；ZF	350	420	14
S400GD	Z；ZF	400	470	--
S450GD	Z；ZF	450	530	--
S500GD	Z；ZF	500	560	--

Package & Shippment

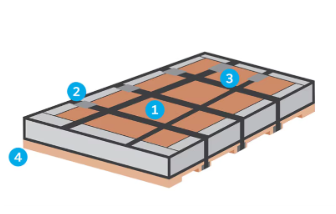

Sheet Packing

1：Metal protective ring
2：Waterproof wrapping paper
3：Buckle
4：Wood pallet

Shipping and Port

1：Wooden pallets

2：Wooden frames for fixing

3：Steel wire ropes for fixing steel coils

4：Loading Port: Tianjin/Qingdao/Shanghai Port.

FAQ

Q：HS Code

A：721049,Check tariffs before ordering from China.

Q：The service life of galvanized steel coils

A：The life of galvanized steel coil depends on the end application and environment, as well as the weight of zinc. For example, the life of z275 galvanized roof in a marine environment is 5 years. The life of z180 cable tray in an indoor environment is 15 years.

Q：The price of galvanized steel coils

A：The price of galvanized steel sheet depends on the raw material hot-rolled, the zinc weight, and the width and thickness of the coil.

Q：Galvanized steel sheet could be oiled?

A：Yes, it could be oiled. 8-20g per square meters. Oiling can prevent the oxidation of galvanized sheets in a short time.

Q：Does the product have quality inspection before loading?
A：Of course, all our products are strictly tested for quality before packaging, and unqualified products will be
destroyed.weaccept the third party inspection absolutely.

Q：What product information do I need to provide?
A：You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
