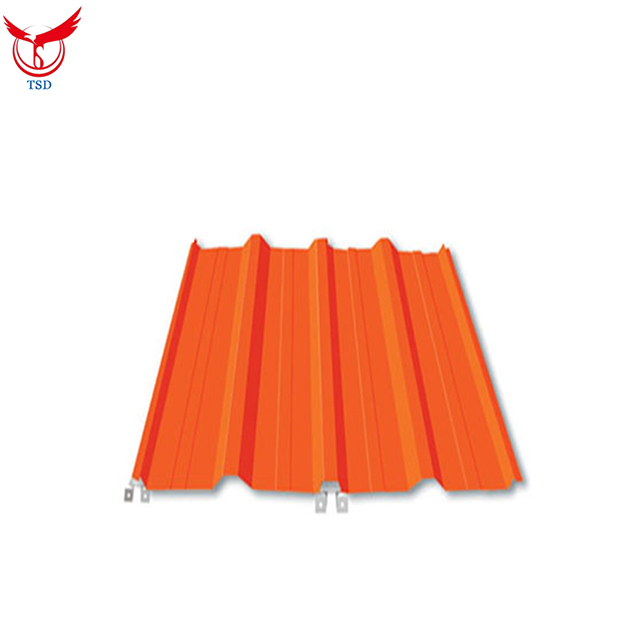

| Product Name | Corrugated Steel Sheet / Steel roofing tile |
| Grade | GI: JIS 3302-SGCC, SGCH(full hard) GL: JIS 3302-SGLC, SGLCH(full hard) |
| Thickness | 0.12mm-0.8mm |
| Width | 665mm-1000mm |
| Length | 1000mm-5900mm |
| Wave Height/Length | Depend on the model of the sheet |
| Raw Material | GI(Galvanized steel sheet) GL(Galvalume steel sheet) |
| Surface Treatment | GI: Chromed(Cr 3+, 6+,0+) GL: Anti-Finger Print / Non Anti-Finger Print |
| Zinc Coating | GI: Z40 g/㎡ - Z275g/㎡ GL: AZ40 g/㎡ - AZ220 g/㎡ |
| Spangle | GI: Regular/Zero/Big/Minimized GL: Regular |
| Yield Strength | ≥300MPa |
| Bundle Weight | 2MT - 5MT |
| Lifespan | 10-15 years, anti-corrosion |
| Product Name | Corrugated Color Coated Steel Sheet / Color Coated Steel Roofing Tile |
| Grade | JIS G3312-CGCC, CGCH(full hard) |
| Thickness | 0.13mm-0.8mm |
| Width | 665mm-1000mm |
| Length | 1000mm-5900mm |
| Wave Height/Length | Depend on the model of the sheet |
| Raw Material | PPGI(Pre-painted Galvanized steel sheet) PPGL(Pre-painted Galvalume steel sheet) |
| Zinc Coating | GI: Z30 g/㎡ - Z275 g/㎡ GL: AZ40 g/㎡ - AZ220 g/㎡ |
| Yield Strength | ≥300MPa |
| Paint type | PE / PET / SMP / HDP / PVDF |
| Coating Thickness | Top Coating: 5+8 μm---5+20 μm |
| Back Coating: 5-7μm | |

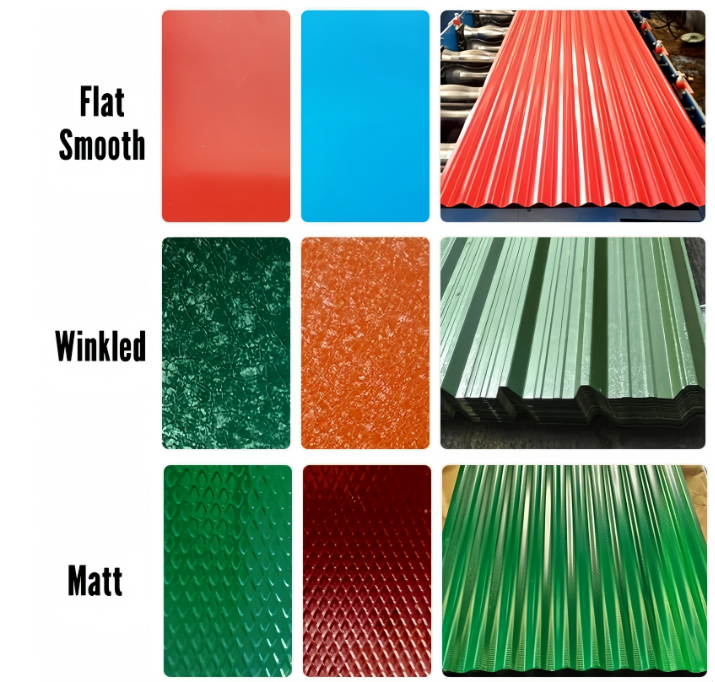

| Color | Red/ Blue/ Gray/ Green/ or Any RAL Color |
| Bundle Weight | 2MT - 5MT |
| Lifespan | 10-15 years, anti-corrosion |
| Packing | Standard export package, by steel pallet. Or according to customer's requirements |
| Price terms | EXW/ FOB/ CFR/ CIF |
| Payment terms | T/T., LC at Sight |
| Delivery time | 20-30 days,upon the final quantity you demand |
| Application | Building material: roof, wall of industrial workshop, warehouse, moving house, container, etc |
| Loading Port | Tianjin Port |
| Remarks | Insurance is all risks |
| We accept the third party certification test |

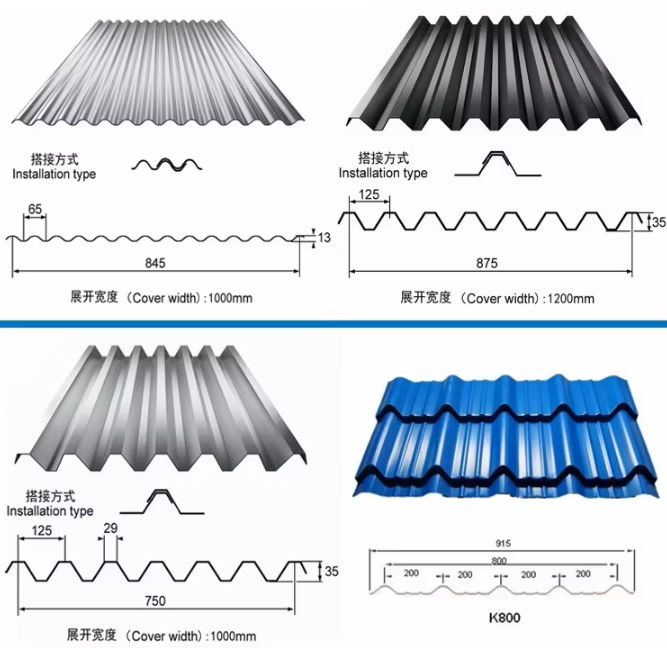

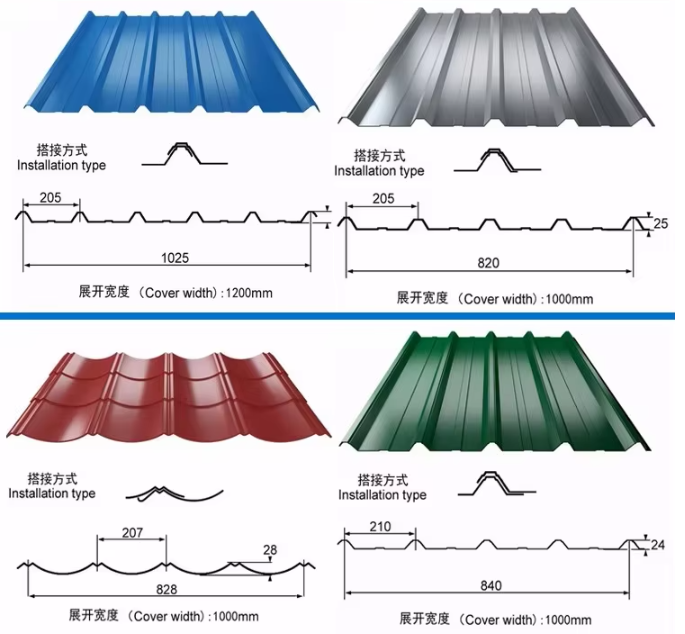

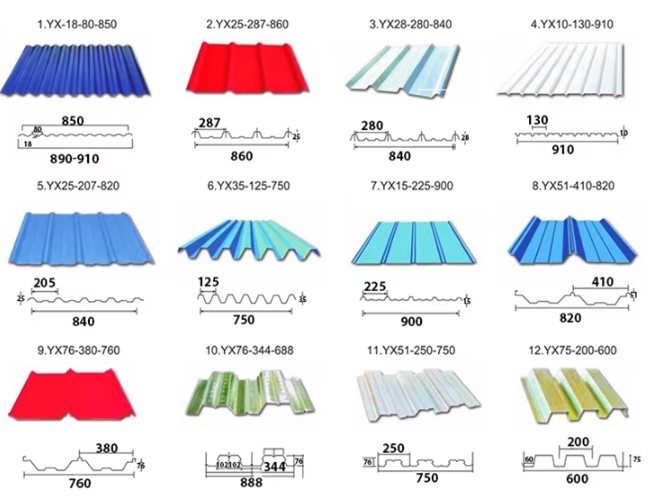

Corrugated sheet is also called profiled sheet. It adopts color coated steel sheet, galvanized sheet and other metal sheets to be rolled and cold-formed into various corrugated profiled sheets. It is suitable for industrial and civil buildings, warehouses, special buildings, large-span Roof, wall and interior and exterior wall decoration of steel structure houses. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, earthquake resistance, fire prevention, rain resistance, long life, maintenance-free, etc., and has been widely used. The color can be customized according to the RAL color card or customer samples.
Yes. 100% Raw material will be tested before bulk production, and we will check the phys-ical properties, shape and tolerance for ensuring qualified products before shipping.
Generally it is 1-2 days if the goods are in stock; or it is 7-20 days if the goods are not in stock.
Polished ball, unground rod , h6 ground rod ,pure tungsten rod, turning insert ,all kinds tungsten fishing sinker etc.
Do you provide free samples?
Sure, we can provide free samples. we ready a large number of stock for test samples or trial order.
Fill your Order List in our online Inquiry System.Also you can directly contact our salesperson by E-mail / WeChat / Whatsup) 2. within 8 hours feedback when receiving your message.
