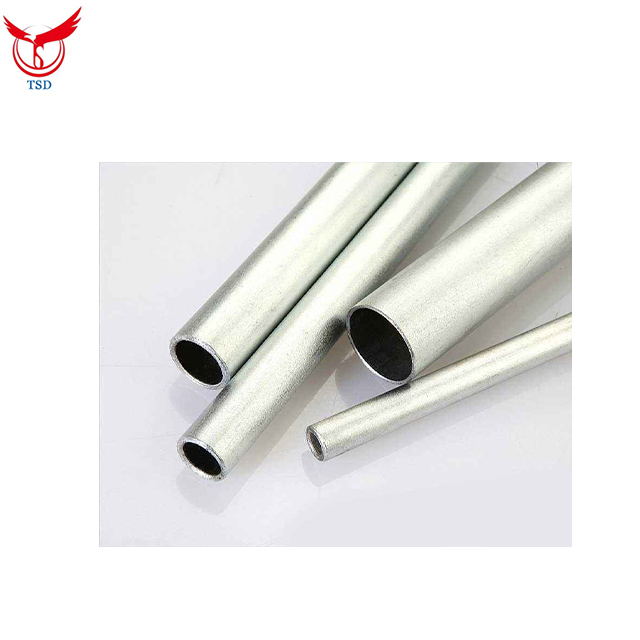

| Product Name | Galvanized Steel Round Pipe(Hot Dipped or Pre Galvanized) |
| Material | Q195 Q235 Q345 |
| Wall Thickness | 1MM~12MM as the requirement |
| Outer Diameter | 21.3MM~219.1MM |
| Length | 5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques |
| Zinc Coating | 30g-275g |
| Technique | ERW(GALVANIZED) |
| Packing | Bundle, or with all kinds of colors PVC or as your requirements |
| Pipe Ends | Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc. |

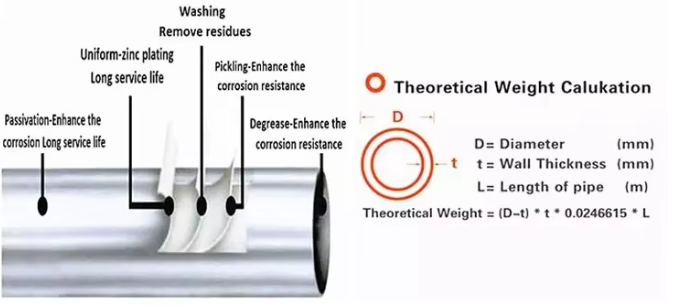

| Surface Treatment | 1. Galvanized 2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement |
| Product Application | 1. Fence, greenhouse, door pipe,greenhouse 2. Low pressure liquid, water, gas, oil, line pipe 3. For both indoor and outdoor the building construction 4. Widely used in scaffolding construction which is much cheaper and convenient |
| Origin | Tianjin China |
| Galvanized Round Steel Pipe | |||||||||
| Stabdaed:API 5L,API 5CT,ASTM A53,ASTM A500,GB9711.1 Application:To be used for conveying gas,water,and petroleum for oil and natural gas industries and use for the structural steel pipes purpose Main Steel Tube Grade:GR.A,GR.B,GR.C,Q195,Q235B,Q345B and so on. | |||||||||
| INCH | OD (MM) | Strandard Wall Thickness | |||||||
| SCH 10WT (mm) | SCH 20WT (mm) | SCH 40WT (mm） | SCH 60WT (mm) | SCH 80WT （mm) | SCH 100WT (mm) | SCH 160WT （mm) | XXS (mm) | ||
| 1/4” | 13.7 | 2.24 | 3.02 | ||||||
| 3/8” | 17.1 | 2.31 | 3.2 | ||||||
| 1/2” | 21.3 | 2.11 | 2.77 | 3.73 | 4.78 | 7.47 | |||
| 3/4" | 26.7 | 2.11 | 2.87 | 3.91 | 5.56 | 7.82 | |||
| 1" | 33.4 | 2.77 | 3.38 | 4.55 | 6.35 | 9.09 | |||
| 1-1/4" | 42.2 | 2.77 | 3.56 | 4.85 | 6.35 | 9.7 | |||
| 1-1/2" | 48.3 | 2.77 | 3.68 | 5.08 | 7.14 | 10.15 | |||
| 2" | 60.3 | 2.77 | 3.91 | 5.54 | 8.74 | 11.07 | |||
| 2-1/2" | 73 | 3.05 | 5.16 | 7.01 | 9.53 | 14.02 | |||
| 3" | 88.9 | 3.05 | 5.49 | 7.62 | 11.13 | 15.24 | |||
| 3-1/2" | 101.6 | 3.05 | 5.74 | 8.08 | |||||
| 4" | 114.3 | 3.05 | 4.5 | 6.02 | 8.56 | 13.49 | 17.12 | ||
| 5" | 141.3 | 3.4 | 6.55 | 9.53 | 15.88 | 19.05 | |||
| 6" | 168.3 | 3.4 | 7.11 | 10.97 | 18.26 | 21.95 | |||
| 8" | 219.1 | 3.76 | 6.35 | 8.18 | 10.31 | 12.7 | 15.09 | 23.01 | 22.23 |
| 10" | 273 | 4.19 | 6.35 | 9.27 | 12.7 | 15.09 | 18.26 | 28.58 | 25.4 |
| 12" | 323.8 | 4.57 | 6.35 | 10.31 | 14.27 | 17.48 | 21.44 | 33.32 | 25.4 |
| 14" | 355 | 6.35 | 7.92 | 11.13 | 15.09 | 19.05 | 23.83 | 36.71 | |
| 16" | 406 | 6.35 | 7.92 | 12.7 | 16.66 | 21.44 | 26.19 | 40.49 | |
| 18" | 457 | 6.35 | 7.92 | 14.27 | 19.05 | 23.83 | 29.36 | 46.24 | |
| 20" | 508 | 6.35 | 9.53 | 15.09 | 20.62 | 26.19 | 32.54 | 50.01 | |
| 22" | 559 | 6.35 | 9.53 | 22.23 | 28.58 | 34.93 | 54.98 | ||
| 24" | 610 | 6.35 | 9.53 | 17.48 | 24.61 | 30.96 | 38.89 | 59.54 | |
| 26" | 660 | 7.92 | 12.7 | ||||||
| 28" | 711 | 7.92 | 12.7 | ||||||
| 30" | 762 | 7.92 | 12.7 | ||||||
| 32" | 813 | 7.92 | 12.7 | 17.48 | |||||
| 34" | 863 | 7.92 | 12.7 | 17.48 | |||||
| 36" | 914 | 7.92 | 12.7 | 19.05 | |||||
| 38" | 965 | ||||||||
| 40" | 1016 | ||||||||
| 42" | 1066 | ||||||||
| 44" | 1117 | ||||||||
| 46" | 1168 | ||||||||
| 48" | 1219 | ||||||||
1. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.
And you can also find our contact information on contact page.
2.Can I get samples before order ?
Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings. We can build the molds and fixtures.
3. what is your delivery time ?
The time of delivery is usually around 1 month(1*40FT as usual).
We can send out in 2 days, if it has stock.
4.What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.
