Foldable And Movable Container House
Home » Products » Foldable And Movable Container House

Foldable And Movable Container House

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

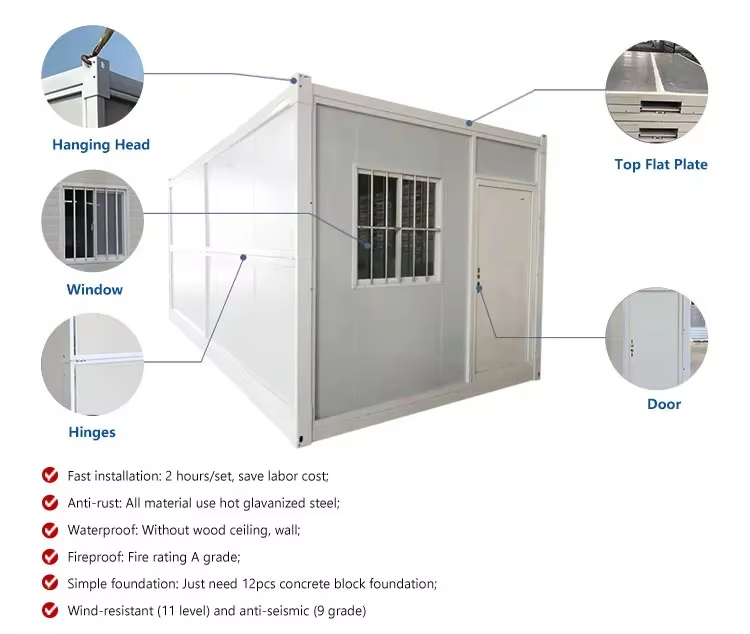

It usually consists of a base, left side wall, right side wall, front door wall, rear end wall, and roof. The base is connected to the lower ends of each wall by hinges, and the walls and the upper ends of each wall are connected to the roof by hinges with movable pins.

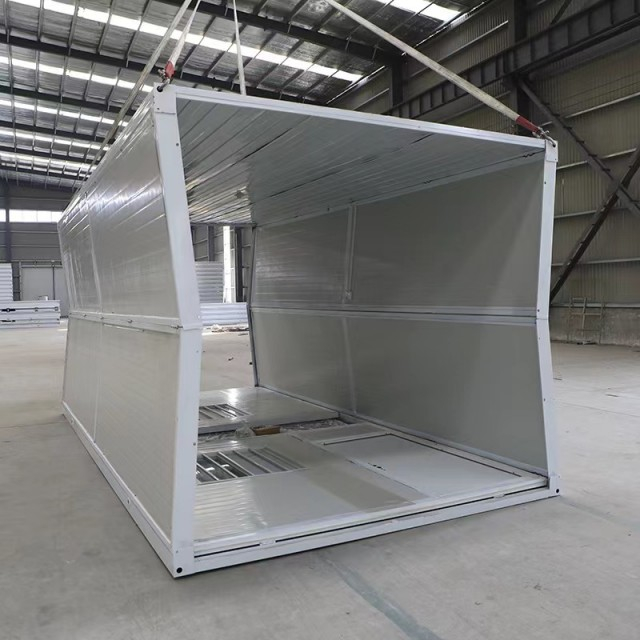

Adopting a modular design, all components can be easily folded or disassembled for easy reassembly when used again. When not loaded, each wall and roof can be folded and stored on the base, saving space.
  • TSD

Availability:
Quantity:
Characteristic
20ft Outer size(mm)
5900*2450*2500
Inner size(mm)
5740*2200*2310
Foldable state(mm)
5900*2480*340
Total weight(kgs)
850

Structure
Top main beam
80*60*1.2mm
Middle bottom beam
80*140*1.2mm
Side beam
60*80*1.3mm Q235B
Front and rear main beams
60*80*1.3mm Q235B
Bottom load-bearing capacity
40*40*1.2mm Q235B
Top load-bearing capacity
40*40*1.2mmQ 235B
Foldable hinge
13mm galvanized hinge
Hanging head
50-130*6mm Q235B
Box Top
Overall framework protection coating
Electrostatic spraying/high gloss white
Inner ceiling
V193*0.25mm

Wall plate
Cement fiber flooring
Glass wool roll 50mm (bulk density 16kg)
Sidewall
65mm composite board 0.23mm+basalt wool (bulk density 50kg)+-0.1mm
Front and rear wall panels
65mm composite board 0.23mm+basalt wool (bulk density 50kg)+-0.1mm
Floor
Cement fiber flooring 18mm

Electricity
Electrical wiring must be installed strictly in accordance with moisture-proof standards, and all electrical products must comply with CE certification. Connect circuits according to circuit engineering specifications. Indoor: incoming wire of 4 square Chinese standard soft copper wire, 1 20A circuit breaker, socket incoming wire of 2.5 square meters, 1 five hole single socket, 1 air conditioning socket, and 1 long LED light
Entry door
970*1970mm
Window
930*930 plastic steel anti-theft integrated window,glass thickness 4mm(warm white)

a

b

Emergency relief:

After earthquakes, floods and other disasters, it can be quickly transported to the disaster area, and a large number of resettlement houses can be built within 72 hours to provide temporary shelter for the affected people.Construction site:
Widely used in highway, railway, construction, wind power, thermal power, photovoltaic, petroleum and other construction sites, providing temporary buildings such as dormitories and offices for workers.Business and tourism:
Can be transformed into mobile shops, internet famous homestays, etc., such as "glass container" homestays by the sea, 270 ° sea view+starry sky roof, attracting many tourists.


1. Easy to relocate and transport:

The folding container house adopts the structure of a standard container and has the characteristics of easy disassembly and assembly. Its compact size after folding makes it easy to store and transport, and it can be stacked multiple times, greatly reducing the unit transportation cost. This feature makes folding container houses very suitable for places that require frequent relocation, such as construction sites, outdoor activities, etc.2. Cost savings:
The material cost of folding container houses is relatively low, mainly using lightweight and affordable steel and sandwich panels. Steel as a frame, sturdy and durable; Sandwich panels are used for walls and roofs, with good insulation and thermal insulation effects, and can effectively reduce overall material costs. In addition, due to the high degree of prefabrication in the factory, on-site construction time and manpower investment are reduced, further saving construction costs.3. Environmental protection and energy conservation:
The materials for folding container houses are usually made of metal materials, which can be recycled and conform to the concept of environmental protection and energy conservation. In today's increasingly valued green economy, this advantage is particularly important.4. Service life and safety:
Although the service life of folding container houses is relatively short, especially in adverse weather conditions where they may be damaged, high-quality folding container houses still have a long service life and high safety. Its structure is stable, with multiple functions such as fire prevention, rain leakage prevention, wind prevention, corrosion prevention, cold prevention, and earthquake resistance. It also has good sound insulation and thermal insulation effects, fully meeting emergency living standards.
5. Quick construction and dismantling


FAQ

1.A:Do you provide on-site installation services?

B:We provide very detailed installation guidance drawings and videos for each project. For large-scale projects, we will have installation workers and supervisors on site. The cost of on-site service should be negotiated with the customer.
2.A:What is your delivery time?
B:Normally, the delivery time is 15 days after receiving the deposit. For large orders,delivery time should be negotiated.
3.A:How to control the quality of one's own products?
B. Design quality: Anticipate potential issues and provide high quality design solutions.
Raw material quality: selecting qualified raw materials.
Production quality: precise manufacturing process,experienced workers, and strict quality inspection.
4.A:What designs do you have in different climates (how do products adapt to different climates)?
B:High wind area: Improve the wind resistance of the internal structure. Cold zone: Increase the thickness of the wall or use good insulation materials to improve the compressive strength of the structure. High corrosion areas: Use corrosion-resistant materials or paint anti-corrosion coatings.
